Sumo Logic

Beacon v0.0.20 added Sumo Logic support for teams that want Beacon endpoint events in Sumo Logic search, Live Tail, dashboards, and investigations. Current Beacon releases write one local source of truth, the active runtime JSONL log, and keep that handoff path bounded with local rotation. Your customer-managed shipper or deployment tooling owns Sumo Source URLs, tokens, checkpointing, rotation handling, and retries. Use this path when you want Beacon events forwarded to a Sumo Logic Hosted Collector HTTP Logs & Metrics Source without storing Sumo credentials in Beacon endpoint configuration.

​
Runtime log paths

ModeRuntime log
User mode~/.beacon/endpoint/logs/runtime.jsonl
System mode/var/log/beacon-agent/runtime.jsonl
Use system mode for MDM deployments so your shipper can tail /var/log/beacon-agent/runtime.jsonl without per-user home directory permissions.

​
Sumo Logic setup

Create or reuse a Sumo Logic Hosted Collector, then add an HTTP Logs & Metrics Source for Beacon endpoint events.

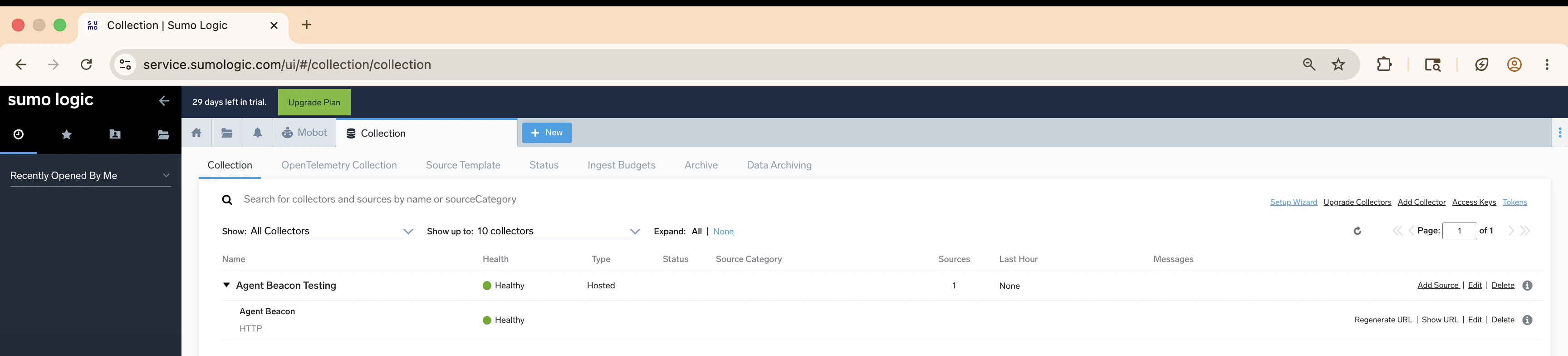

Sumo Logic collector configuration for Beacon endpoint telemetry.
Configure the HTTP Logs & Metrics Source with source metadata your team can search and route consistently:
_sourceCategory=security/agentbeacon
source name=agentbeacon
fields=product=agentbeacon,telemetry=ai_agent,env=prod

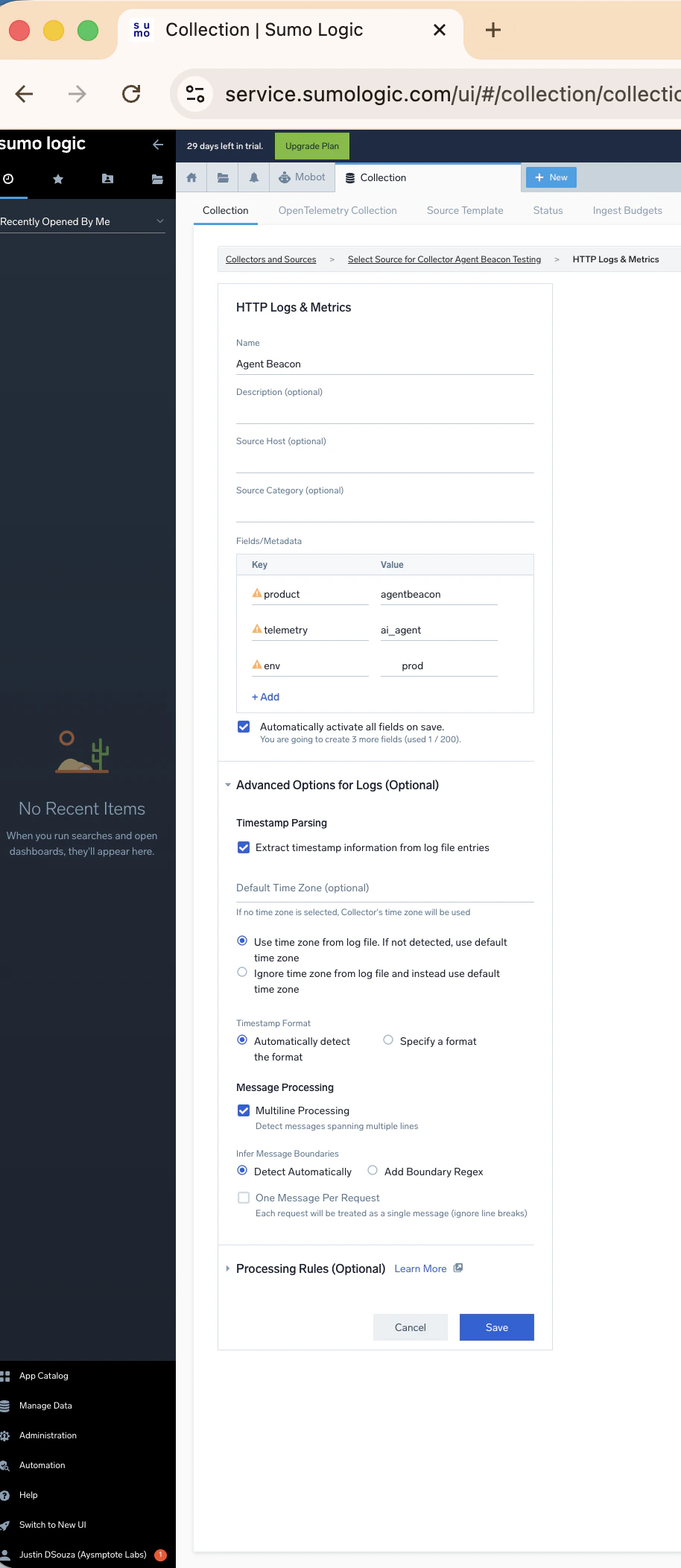

Sumo Logic HTTP Logs and Metrics Source configuration for Beacon endpoint events.
If you use Sumo fields, confirm the fields exist and are enabled in the Sumo Fields table schema so they are not dropped at ingest.

​
Source URL and token

Copy the Source URL from the HTTP Logs & Metrics Source. You can use either:
  • A presigned Source URL in SUMO_URL.
  • Sumo’s Auth Header URL in SUMO_URL with the separate token in SUMO_TOKEN.

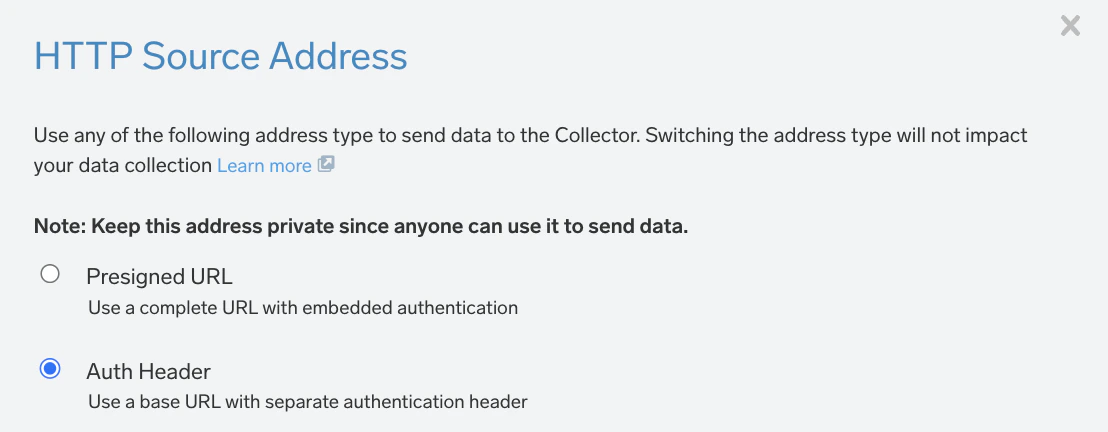

Sumo Logic Auth Header configuration showing the Source URL and x-sumo-token option.
Keep the Source URL and token in your log shipper, endpoint-management secret store, or deployment tooling. Beacon does not store them.

​
Install the Sumo pack

Generate the Sumo Logic content pack for a managed system-mode deployment:
sudo /opt/beacon/bin/beacon endpoint sumo install-pack \
  --system \
  --output ./beacon-sumo-pack
The pack includes:
  • README.md with setup and validation steps
  • sumo-upload-smoke-test.sh for one-shot validation uploads
  • vector.toml for customer-managed Vector forwarding
  • sample-event.jsonl with Beacon endpoint sample events
If you use a custom Beacon log path, generate the pack with --log-path /path/to/runtime.jsonl. The generated sumo-upload-smoke-test.sh and vector.toml use the selected path.

​
One-shot smoke test

Use the generated smoke-test script to upload the current runtime log once. This is only for validation because it re-uploads the whole file every time. With a presigned Sumo Source URL:
export SUMO_URL="https://collectors.sumologic.com/receiver/v1/http/..."
./beacon-sumo-pack/sumo-upload-smoke-test.sh
With Sumo’s Auth Header option:
export SUMO_URL="https://collectors.sumologic.com/receiver/v1/http"
export SUMO_TOKEN="..."
./beacon-sumo-pack/sumo-upload-smoke-test.sh
You can override the default metadata:
export BEACON_LOG="/var/log/beacon-agent/runtime.jsonl"
export SUMO_SOURCE_CATEGORY="security/agentbeacon"
export SUMO_FIELDS="product=agentbeacon,telemetry=ai_agent,env=prod"
The script uses curl -T so JSONL line breaks are preserved for Sumo message boundary detection.

​
Production forwarding

For production, use the generated Vector config as a customer-managed host-agent forwarding template. Beacon remains the local JSONL producer; Vector tails runtime.jsonl, checkpoints file offsets in its data_dir, batches Beacon events, and posts newline-delimited JSON to the HTTP Logs & Metrics Source. Install Vector using your normal endpoint management tooling, then copy the generated config into Vector’s config directory. On a macOS system-mode Beacon deployment, the generated config tails /var/log/beacon-agent/runtime.jsonl:
sudo mkdir -p /etc/vector
sudo cp ./beacon-sumo-pack/vector.toml /etc/vector/beacon-sumo.toml
export SUMO_URL="https://collectors.sumologic.com/receiver/v1/http/..."
export SUMO_TOKEN="..."
vector validate /etc/vector/beacon-sumo.toml
vector --config /etc/vector/beacon-sumo.toml
SUMO_TOKEN is optional when SUMO_URL is a presigned Source URL. In managed deployments, provide SUMO_URL, optional SUMO_TOKEN, SUMO_SOURCE_CATEGORY, and SUMO_FIELDS through the Vector service environment or your MDM/secret tooling. Do not store Sumo destination secrets in Beacon endpoint configuration. The template expects a Vector version with the file source, remap transform, and http sink. It parses each Beacon JSONL line and re-encodes the original Beacon event as JSON with newline-delimited framing so Sumo receives one Beacon event per line, without a Vector wrapper. If you adapt the config, use Sumo’s OpenTelemetry Collector distribution, or use another forwarder, it should:
  • Checkpoint file offsets.
  • Follow Beacon’s local file rotation at the active runtime.jsonl path.
  • Keep each Beacon event as one JSON object per line.
  • Batch newline-delimited JSON records.
  • Keep uncompressed POST payloads near Sumo’s 100 KB to 1 MB guidance.
  • Gzip payloads with Content-Encoding: gzip.
  • Retry transient failures without duplicating the whole file.
In the Sumo HTTP Source advanced log options, avoid One Message Per Request when sending batched JSONL payloads. Use automatic message boundary detection or a boundary configuration that treats each JSON line as a distinct log record.

​
Validate forwarding

Confirm the Beacon runtime log exists and has recent endpoint events:
sudo /opt/beacon/bin/beacon endpoint status --system --json
sudo test -r /var/log/beacon-agent/runtime.jsonl
Write a Sumo Logic validation event:
sudo /opt/beacon/bin/beacon endpoint sumo validate --system
Run the one-shot smoke test or wait for your production forwarder to ship the new line. In Sumo Logic, validate with Live Tail first because normal Search can lag while data is indexed. Suggested Live Tail or Search filters:
_sourceCategory=security/agentbeacon product=agentbeacon telemetry=ai_agent

_sourceCategory=security/agentbeacon "Beacon endpoint Sumo validation event"

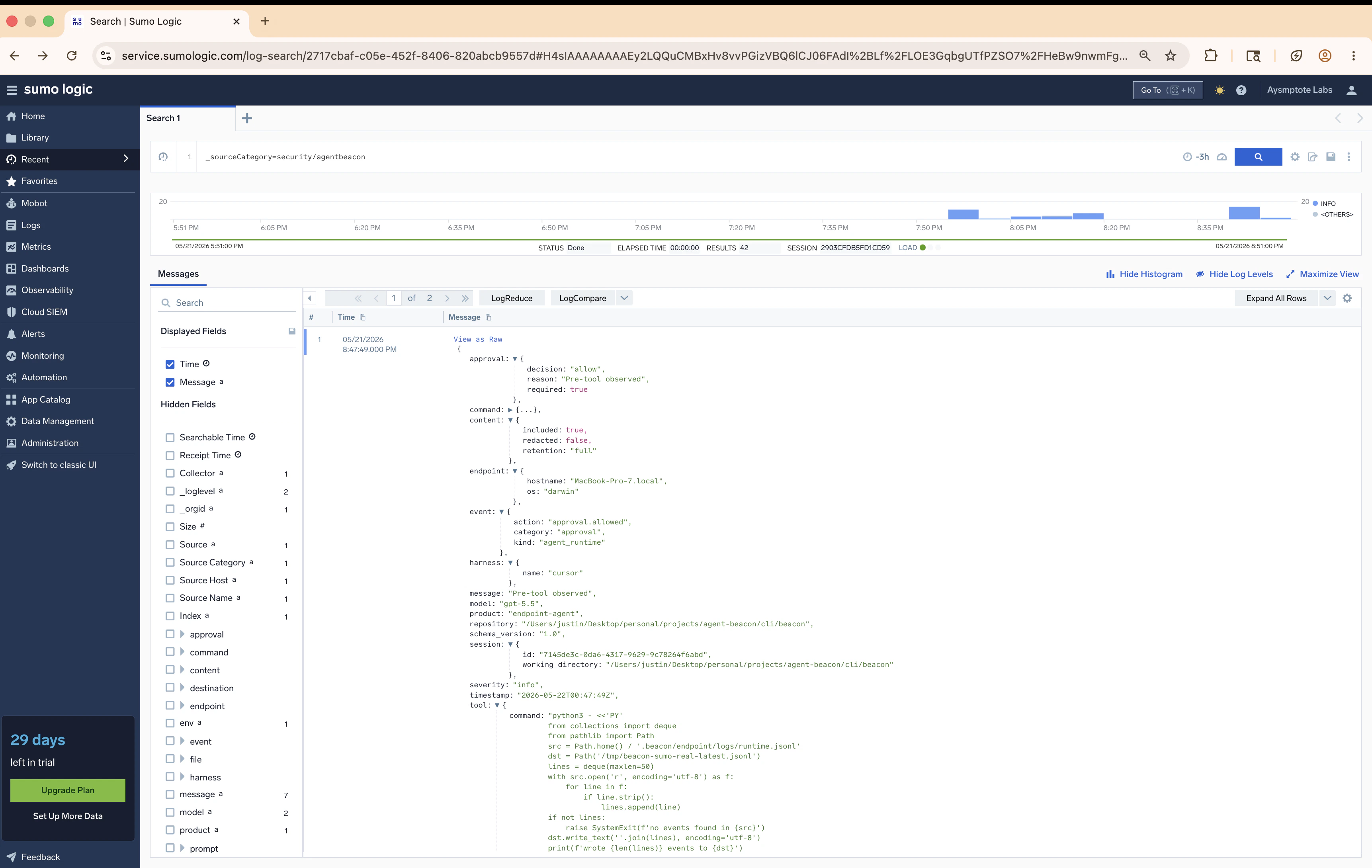

Sumo Logic sample log queries for Beacon endpoint events.
If events do not appear, verify that your forwarder is reading the same runtime log path Beacon writes, that the Source URL or Auth Header token is current, that X-Sumo-Category and X-Sumo-Fields match your searches, and that message boundary detection treats each JSONL line as a distinct event.

​
Content retention

Beacon content retention controls what can be written to runtime.jsonl and forwarded to Sumo Logic. Use metadata or redacted for stricter deployments:
sudo /opt/beacon/bin/beacon endpoint install --system --content-retention metadata
Use full only when prompt text, tool input, command output, and retained content match your approved telemetry collection policy.
