Forwarding Overview

Beacon writes normalized AI runtime telemetry as one JSON object per line in the active local runtime JSONL log. Beacon keeps that handoff path bounded with local rotation. Wazuh ingests those events with a standard localfile input and Beacon’s generated Wazuh rules. Use this guide when you want Wazuh to alert on local AI agent activity such as prompt submissions, command execution, tool use, file reads and writes, approval decisions, and endpoint health events.

​
How it works

Beacon does not send events directly to the Wazuh API. The integration is file based:
  1. Beacon writes endpoint events to runtime.jsonl.
  2. Wazuh logcollector tails that file with <log_format>json</log_format>.
  3. Wazuh decodes each JSON object and stores the fields under data.*.
  4. Beacon’s Wazuh rules classify events with rule IDs such as 100500 and 100550.
  5. Analysts review the events in Wazuh Dashboard under Threat Hunting → Events.
This keeps Beacon local-only. Wazuh owns collection, indexing, retention, user access, and dashboard behavior.

​
Runtime log paths

ModeRuntime log
User mode~/.beacon/endpoint/logs/runtime.jsonl
System mode/var/log/beacon-agent/runtime.jsonl
Use system mode for MDM or fleet deployments so all managed endpoints write to the shared /var/log/beacon-agent/runtime.jsonl path. User mode is convenient for local testing, especially on a workstation running Wazuh in Docker.

​
Prerequisites

Before configuring Wazuh, make sure:
  • Beacon is installed or available on the endpoint.
  • The Beacon runtime log exists, or Beacon can create it.
  • Wazuh manager or Wazuh agent can read the runtime log path.
  • You know where your Wazuh manager loads custom rules from. For many Linux and Docker installs this is /var/ossec/etc/rules.
  • You can restart or reload Wazuh after changing ossec.conf or custom rules.

​
Production setup

For managed endpoints, install Beacon in system mode and configure Wazuh to tail the system runtime log.

​
1. Configure Beacon

Install or repair Beacon in system mode:
Install or repair Beacon in system mode
sudo beacon endpoint install --system
Confirm the runtime log path:
Confirm the runtime log path
sudo beacon endpoint status --system

​
2. Generate Wazuh content

Generate the Wazuh pack:
Generate the Wazuh pack
beacon endpoint wazuh install-pack --system --output ./beacon-wazuh
The pack includes:
  • ossec-localfile.xml: Wazuh localfile snippet for the Beacon runtime log.
  • beacon-rules.xml: Wazuh rules for Beacon endpoint events.
  • sample-event.jsonl: known-good sample events.
  • apply-dashboard-default-columns.sh: optional helper for Wazuh Dashboard display columns.
  • README.md: install notes.

​
3. Install Wazuh localfile config

Add the generated ossec-localfile.xml block to the Wazuh agent or manager configuration that runs on the endpoint:
<localfile>
  <location>/var/log/beacon-agent/runtime.jsonl</location>
  <log_format>json</log_format>
</localfile>
If Beacon writes somewhere custom, generate the snippet with that path:
If Beacon writes somewhere custom, generate the snippet with that path
beacon endpoint wazuh print-config --log-path /path/to/runtime.jsonl

​
4. Install Beacon rules

Install beacon-rules.xml on the Wazuh manager, usually under:
/var/ossec/etc/rules/beacon-rules.xml
Then restart or reload Wazuh so the localfile input and rules are active.

​
Local Docker test

Use this flow when Wazuh runs locally with Docker Compose and Beacon runs on your workstation. The key idea is that Wazuh reads paths from inside the container, so the host Beacon log directory must be bind-mounted into the Wazuh manager container.

​
1. Confirm the Beacon runtime log

User-mode Beacon writes to:
User-mode Beacon writes to
ls -l "$HOME/.beacon/endpoint/logs/runtime.jsonl"
System-mode Beacon writes to:
System-mode Beacon writes to
sudo ls -l /var/log/beacon-agent/runtime.jsonl
For local Docker testing on macOS, user mode is often easier. The important detail is that Wazuh reads paths from inside the container, not from the host filesystem.

​
2. Mount the Beacon log into Wazuh

In the Wazuh manager service in your Docker Compose file, mount the host Beacon log directory into the manager container. For a user-mode Beacon install:
services:
  wazuh.manager:
    volumes:
      - /Users/<user>/.beacon/endpoint/logs:/var/log/beacon-agent:ro
If you are testing a system-mode Beacon install, mount the system log directory instead:
services:
  wazuh.manager:
    volumes:
      - /var/log/beacon-agent:/var/log/beacon-agent:ro
The Wazuh localfile location should use the container-side path:
<localfile>
  <location>/var/log/beacon-agent/runtime.jsonl</location>
  <log_format>json</log_format>
</localfile>
Add that block to the Wazuh manager configuration. In the standard single-node Wazuh Docker setup, this is usually the host-mounted manager config file, such as:
config/wazuh_cluster/wazuh_manager.conf
After editing the Compose file, recreate the manager so Docker applies the new mount:
After editing the Compose file, recreate the manager so Docker applies the new mount
docker compose up -d wazuh.manager

​
3. Install the Beacon Wazuh rules

Generate the Beacon Wazuh pack with the same container-side log path:
Generate the Beacon Wazuh pack with the same container-side log path
beacon endpoint wazuh install-pack \
  --output ./beacon-wazuh \
  --log-path /var/log/beacon-agent/runtime.jsonl
Copy the rules into the Wazuh manager container:
Copy the rules into the Wazuh manager container
docker cp ./beacon-wazuh/beacon-rules.xml \
  <wazuh-manager-container>:/var/ossec/etc/rules/beacon-rules.xml
Set ownership and permissions if needed:
Set ownership and permissions if needed
docker exec <wazuh-manager-container> chown wazuh:wazuh /var/ossec/etc/rules/beacon-rules.xml
docker exec <wazuh-manager-container> chmod 660 /var/ossec/etc/rules/beacon-rules.xml
Then restart the Wazuh manager so the rule file and localfile config are loaded:
Then restart the Wazuh manager so the rule file and localfile config are loaded
docker restart <wazuh-manager-container>

​
4. Write a validation event

Write a known-good validation event to the host-side Beacon runtime log. For user mode:
Write a known-good validation event to the host-side Beacon runtime log. For user mode
beacon endpoint wazuh validate \
  --user \
  --log-path "$HOME/.beacon/endpoint/logs/runtime.jsonl"
For system mode:
Use system mode
sudo beacon endpoint wazuh validate --system
Confirm the manager can see the mounted log and that Wazuh has emitted an alert:
Confirm the manager can see the mounted log and that Wazuh has emitted an alert
docker exec <wazuh-manager-container> tail -n 5 /var/log/beacon-agent/runtime.jsonl
docker exec <wazuh-manager-container> \
  sh -lc 'grep -F "Beacon endpoint Wazuh validation event" /var/ossec/logs/alerts/alerts.json | tail -n 5'
Expected rule IDs:
  • 100500: base Beacon endpoint runtime event.
  • 100550: AI agent workflow telemetry, such as prompts, tool activity, and file activity.

​
Wazuh Dashboard

Open Wazuh Dashboard, then go to Threat Hunting → Events. Start with one of these filters:
data.vendor: beacon

data.vendor: beacon AND data.event.action: prompt.submitted

data.vendor: beacon AND data.harness.name: cursor

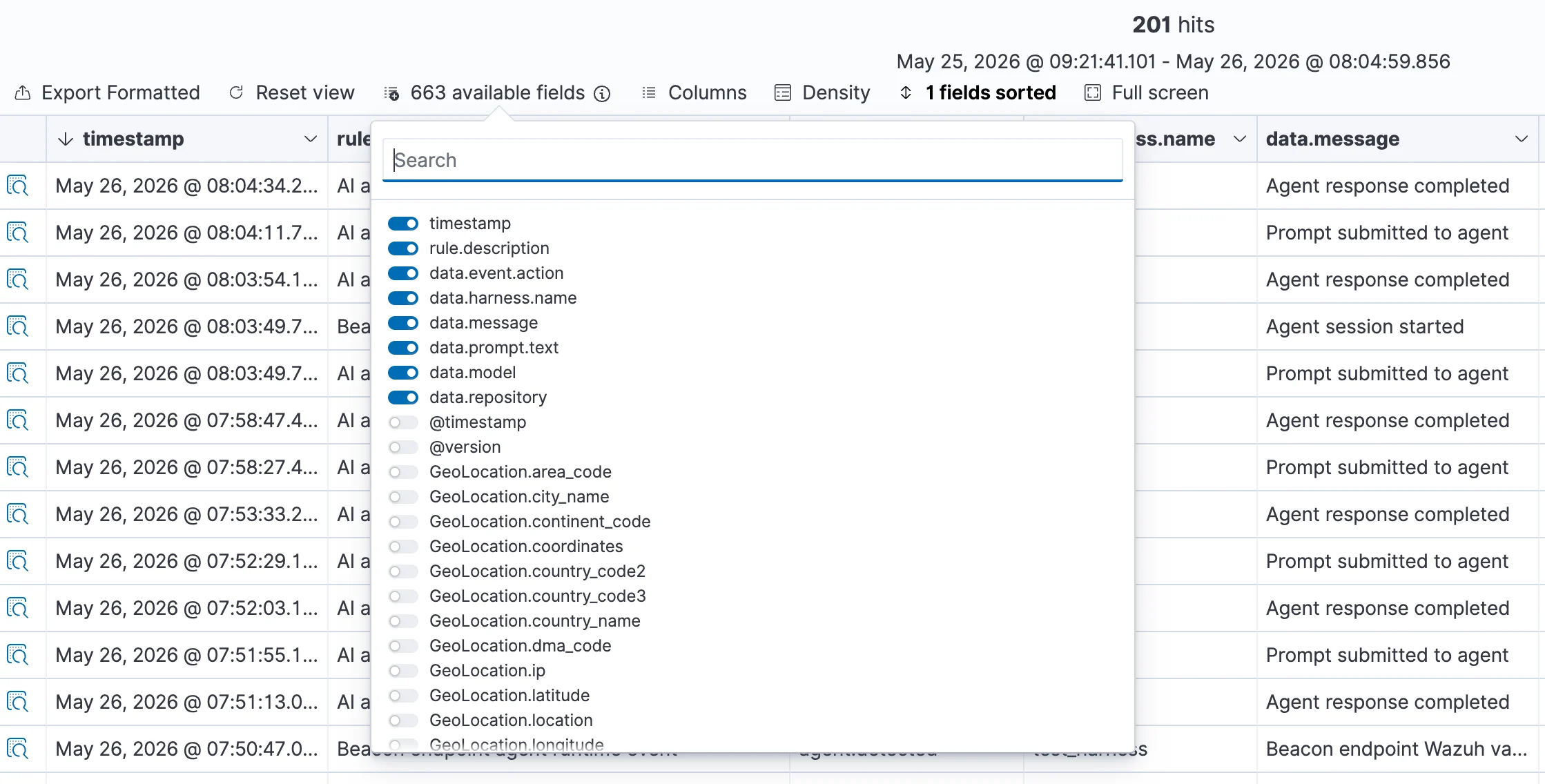

Use Columns to add Beacon fields to the event table: Wazuh Dashboard Columns selector with Beacon fields such as data.event.action, data.harness.name, data.message, data.prompt.text, data.model, and data.repository enabled. Useful display fields include:
timestamp
rule.description
data.event.action
data.harness.name
data.message
data.prompt.text
data.model
data.repository
data.command
data.file
data.session.id
data.session.working_directory
Wazuh stores decoded Beacon fields under data.*. In the default Wazuh alert index, command and file details are usually exposed as data.command and data.file. Nested raw Beacon fields such as data.command.command, data.file.path, and data.tool.name may not appear as separate display fields unless your Wazuh indexing configuration maps them. You can also apply the recommended columns through the generated helper:
You can also apply the recommended columns through the generated helper
cd ./beacon-wazuh
WAZUH_DASHBOARD_URL=https://localhost \
WAZUH_DASHBOARD_USER=admin \
WAZUH_DASHBOARD_PASSWORD="$WAZUH_DASHBOARD_PASSWORD" \
sh apply-dashboard-default-columns.sh

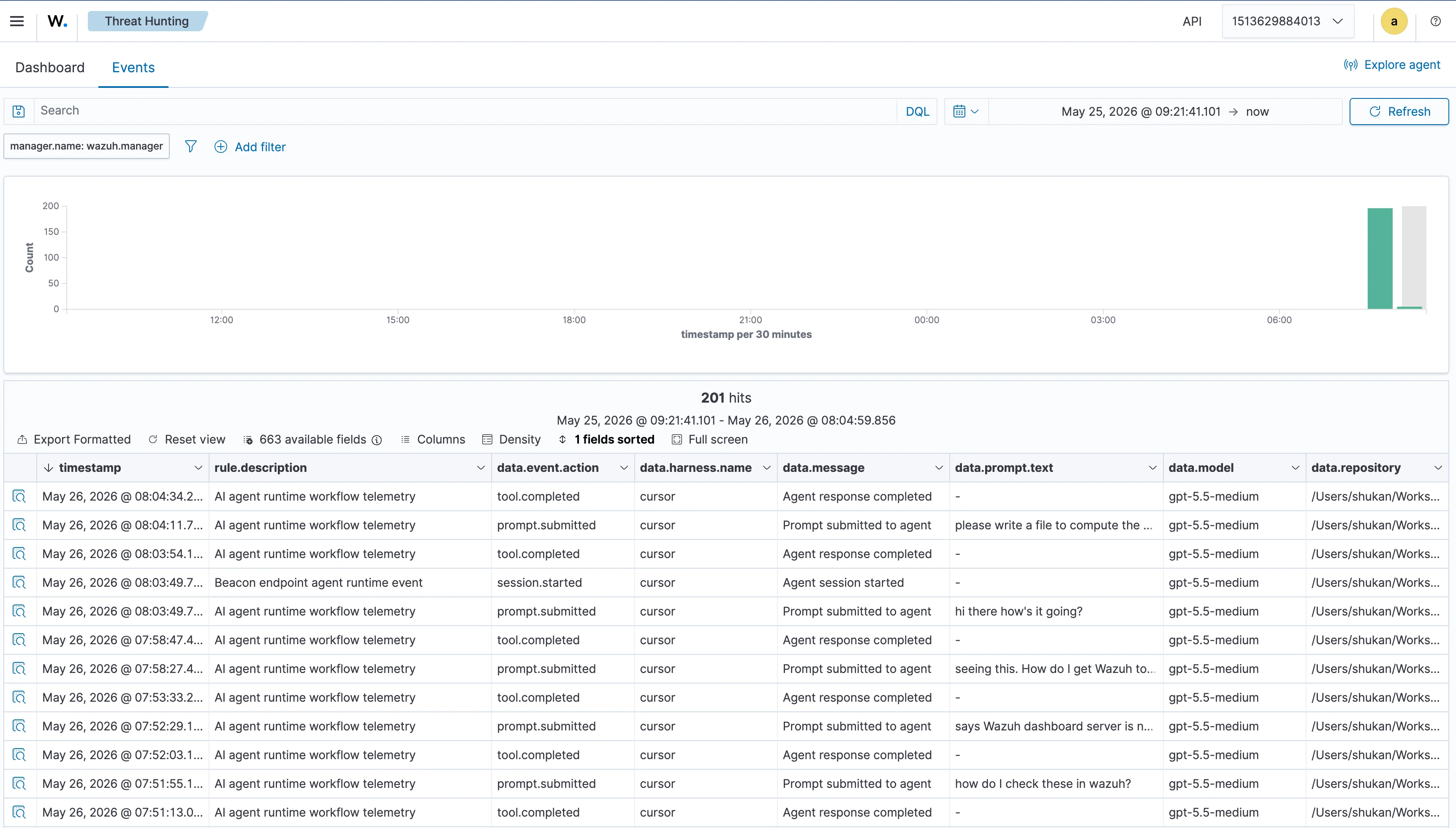

After configuration, Beacon prompts and workflow events should appear in the Threat Hunting event table: Wazuh Threat Hunting Events view showing live Beacon Cursor events with event action, harness, message, prompt text, model, and repository fields.

​
Validate ingestion end to end

For production system-mode deployments, write a validation event:
For production system-mode deployments, write a validation event
sudo /opt/beacon/bin/beacon endpoint wazuh validate --system
Then confirm the validation event appears in Wazuh Dashboard or in alerts.json. If the event does not appear, verify that the runtime log exists, Beacon can write to it, and Wazuh can read it:
If the event does not appear, verify that the runtime log exists, Beacon can write to it, and Wazuh can read it
sudo test -w /var/log/beacon-agent/runtime.jsonl
sudo test -r /var/log/beacon-agent/runtime.jsonl
sudo launchctl print system/com.beacon.endpoint.collector
For Docker-based tests, also verify the manager container can resolve its peer services and see the mounted runtime log:
For Docker-based tests, also verify the manager container can resolve its peer services and see the mounted runtime log
docker network inspect <compose-project>_default
docker exec <wazuh-manager-container> ls -l /var/log/beacon-agent/runtime.jsonl
docker exec <wazuh-manager-container> sh -lc 'grep -i beacon /var/ossec/logs/ossec.log | tail -n 20'
If Wazuh Dashboard says the server is not ready yet, check that the dashboard can resolve and connect to the Wazuh indexer. Recreating the indexer and dashboard containers with Docker Compose usually restores the expected Compose DNS aliases:
If Wazuh Dashboard says the server is not ready yet, check that the dashboard can resolve and connect to the Wazuh indexer. Recreating the indexer and dashboard containers with Docker Compose usually restores the expected Compose DNS aliases
docker compose up -d --force-recreate wazuh.indexer wazuh.dashboard

​
Troubleshooting

​
No Beacon alerts in Wazuh

Check each handoff point:
  • Beacon wrote an event to the host runtime log.
  • The Wazuh manager or agent can read the same file path.
  • Docker deployments use the container-side path in <location>.
  • beacon-rules.xml is installed on the manager and Wazuh was restarted after the file was copied.
  • Wazuh logcollector reports that it is analyzing the Beacon runtime log.
Useful checks:
Useful checks
tail -n 5 "$HOME/.beacon/endpoint/logs/runtime.jsonl"
docker exec <wazuh-manager-container> tail -n 5 /var/log/beacon-agent/runtime.jsonl
docker exec <wazuh-manager-container> sh -lc 'grep -i beacon /var/ossec/logs/ossec.log | tail -n 20'

​
Validation events appear, but prompts do not

The validation event proves Wazuh can ingest the file. Prompt and tool activity also require the relevant runtime integration, such as Cursor hooks or OTLP telemetry, to be configured. For Cursor hooks, check:
Check Cursor hooks
beacon endpoint hooks status --harness cursor
Then submit a new prompt and search Wazuh for:
data.vendor: beacon AND data.event.action: prompt.submitted

​
Fields are present only inside full_log

Wazuh preserves the raw Beacon JSON in full_log, but not every nested JSON field is always exposed as its own dashboard column. Use the data.* fields listed above for the default Wazuh alert index. If your team needs deeper nested fields as first-class columns, adjust Wazuh index templates or downstream parsing for your deployment.

Wazuh command reference

Review Beacon Wazuh commands and flags.

Endpoint event schema

Review normalized Beacon JSONL fields and example events.
