Forwarding Overview

Beacon streams endpoint events to Datadog by writing local JSONL and letting the Datadog Agent tail that file. Beacon does not store Datadog API keys or site configuration. Use this guide for a first-time macOS setup with Datadog Logs. You can complete the setup entirely from the command line; the Datadog UI steps below are optional and are included to show where the same values appear in the Datadog onboarding flow.

​
What You Need

  • Beacon CLI installed.
  • Datadog Agent installed and connected to your Datadog organization.
  • Permission to edit /opt/datadog-agent/etc/datadog.yaml and restart the Datadog Agent.

​
Choose User Or System Mode

SetupBeacon commandsRuntime log
Local user testingbeacon endpoint ...~/.beacon/endpoint/logs/runtime.jsonl
MDM or managed endpointsudo /opt/beacon/bin/beacon endpoint ... --system/var/log/beacon-agent/runtime.jsonl
For production or MDM deployment, prefer system mode. It avoids per-user home-directory permissions because the Datadog Agent can tail /var/log/beacon-agent/runtime.jsonl.

​
1. Install Beacon And Confirm Logs

For local testing:
Set up local testing
brew tap asymptote-labs/tap
brew install beacon

beacon endpoint install
beacon endpoint status
ls -l ~/.beacon/endpoint/logs/runtime.jsonl
For system mode:
Use system mode
sudo /opt/beacon/bin/beacon endpoint install --system
sudo /opt/beacon/bin/beacon endpoint status --system
sudo ls -l /var/log/beacon-agent/runtime.jsonl

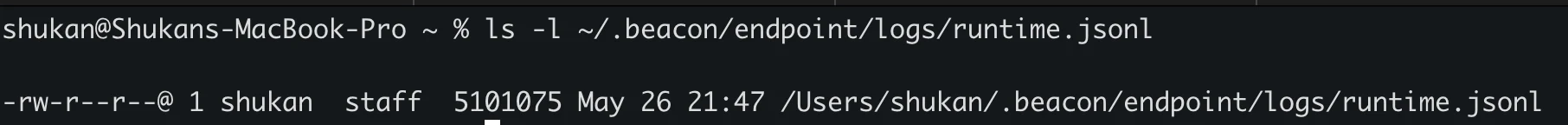

Terminal showing the Beacon runtime JSONL log exists at the user-mode path.

​
2. Enable Datadog Log Collection

Open the Datadog Agent config:
Open the Datadog Agent config
sudo nano /opt/datadog-agent/etc/datadog.yaml
Set:
logs_enabled: true
You do not need to configure Datadog’s OpenTelemetry Agent for this setup. Beacon v0 uses Datadog Agent custom file log collection on macOS.

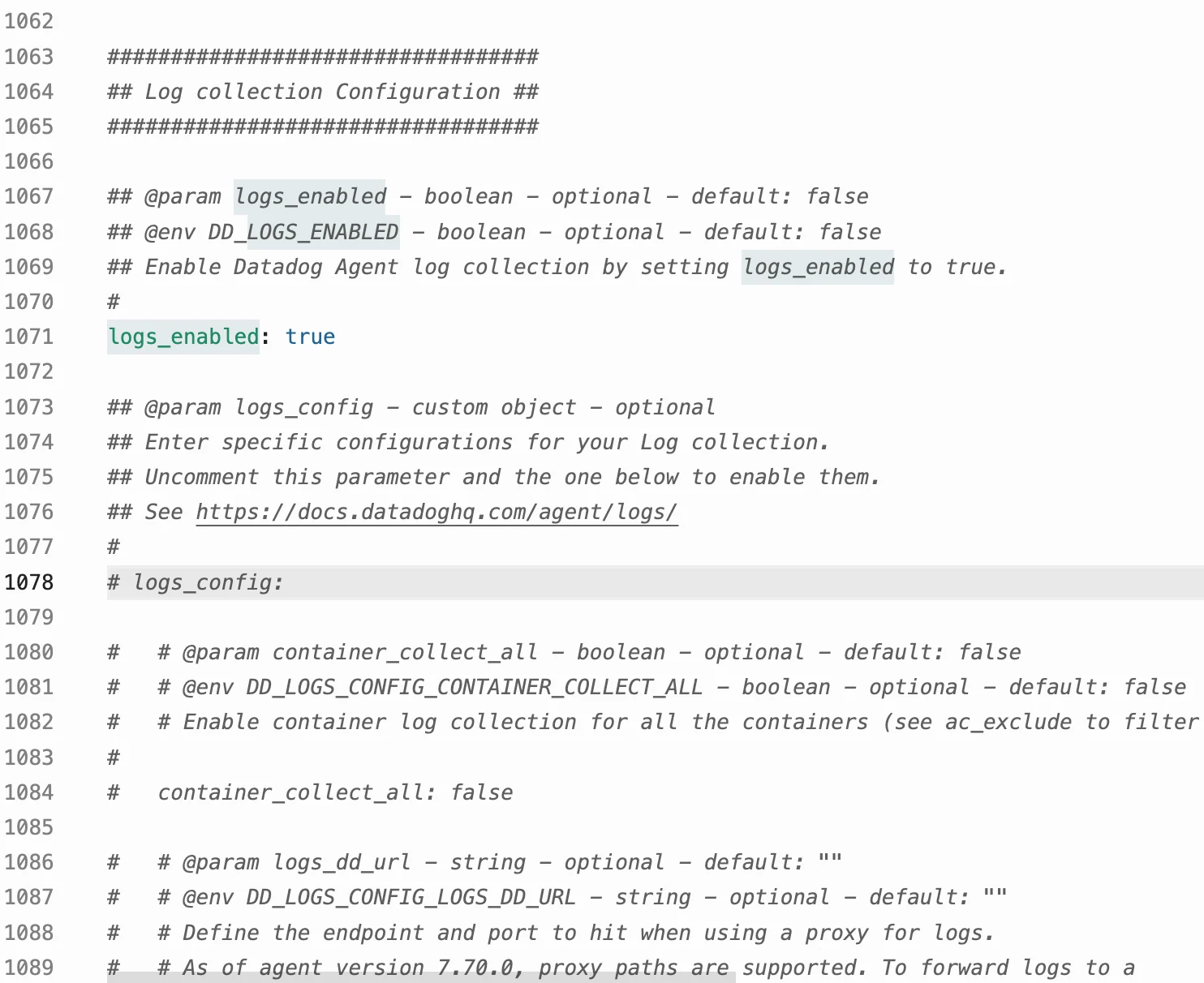

Datadog Agent datadog.yaml showing logs_enabled set to true.

​
3. Optional: Review Custom File Logs In Datadog

This step is optional. Beacon generates the Datadog Agent config in the next step, so you do not need to copy anything manually from the Datadog UI. If you want to see where the values come from in Datadog, open Logs > Add a Log Source.

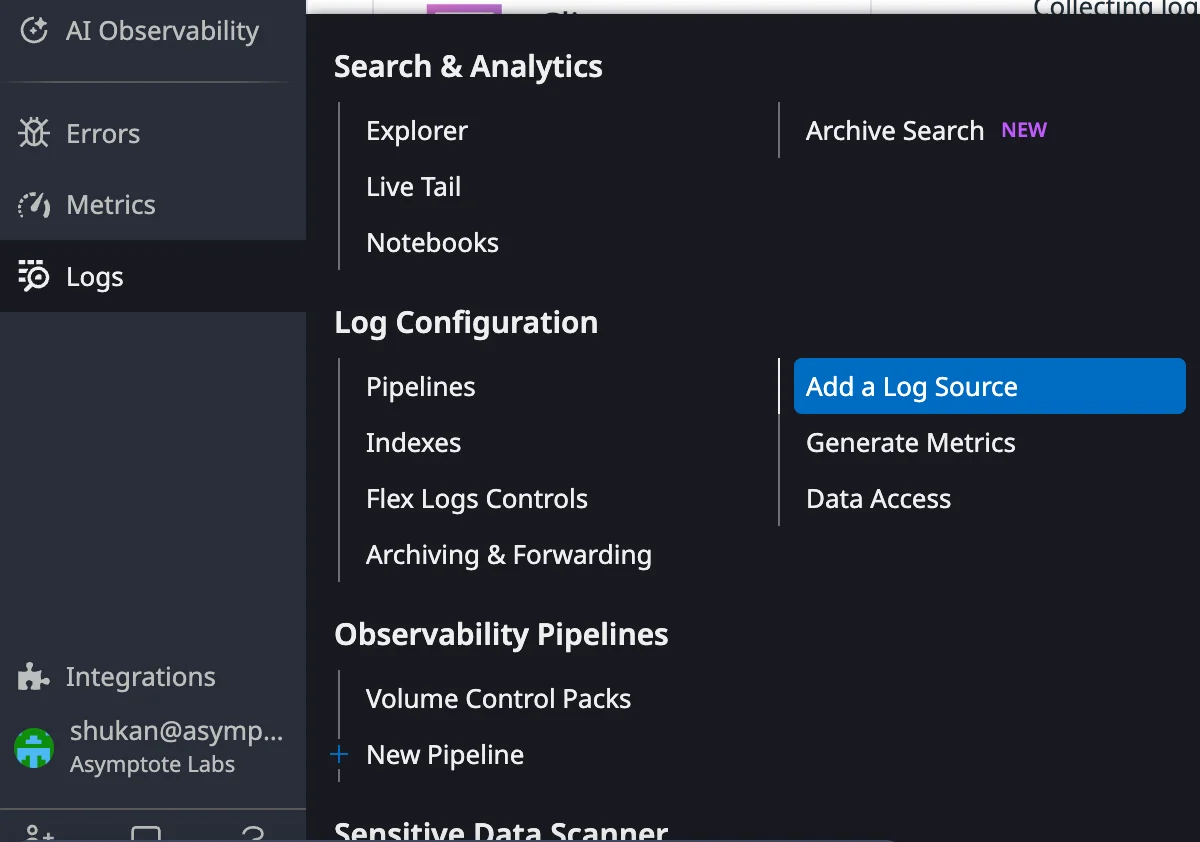

Datadog navigation showing Logs and Add a Log Source selected.
Choose Server > Custom Files. Fill the form with:
FieldLocal user testingSystem / MDM
Path/Users/<user>/.beacon/endpoint/logs/runtime.jsonl/var/log/beacon-agent/runtime.jsonl
Servicebeacon-endpoint-agentbeacon-endpoint-agent
Sourcebeaconbeacon
Leave multiline parsing blank. Beacon writes one JSON event per line.

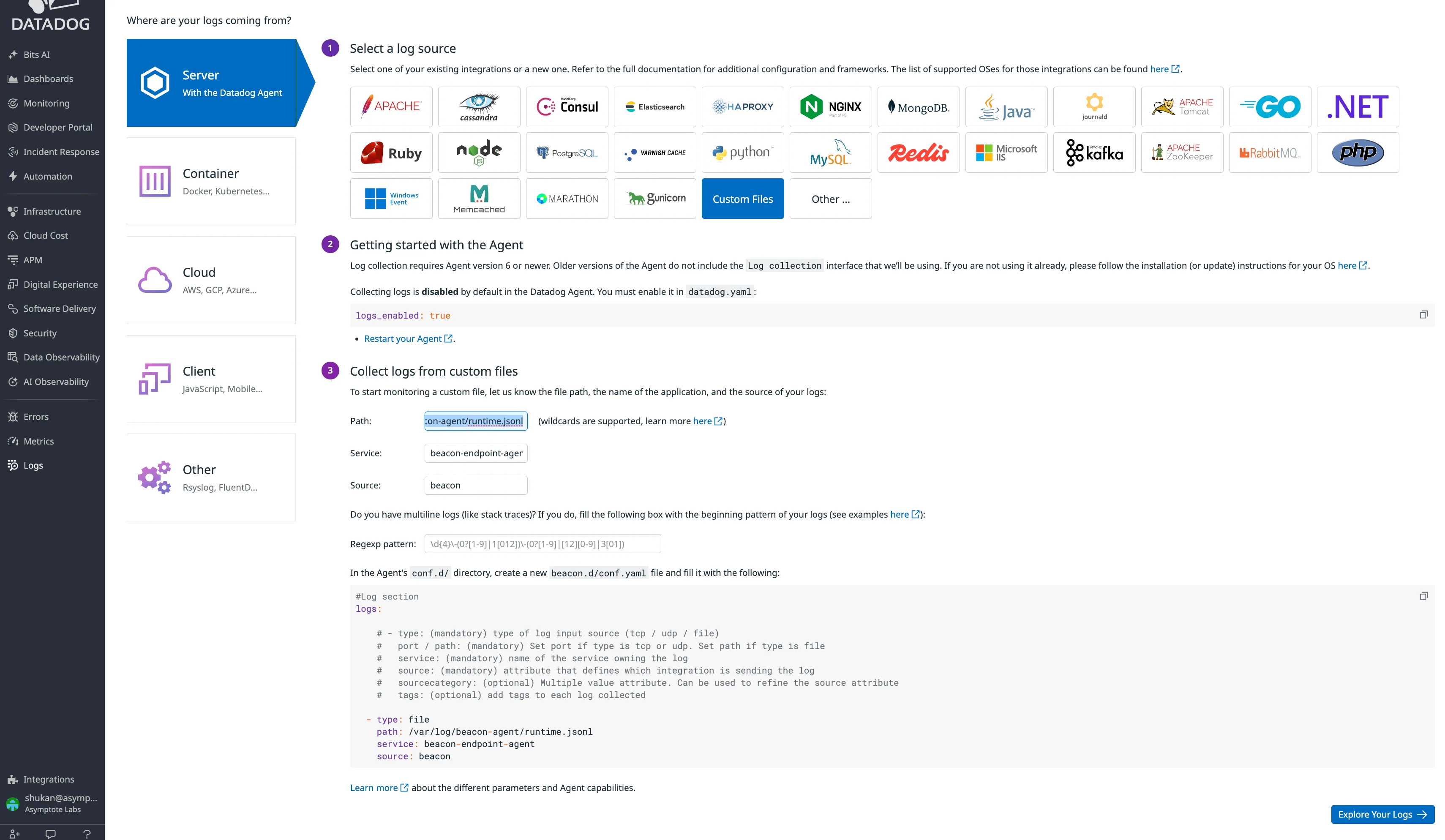

Datadog Custom Files setup page filled with Beacon runtime log path, service beacon-endpoint-agent, and source beacon.

​
4. Generate And Install The Beacon Config

Generate Beacon’s Datadog content pack:
Generate Beacon's Datadog content pack
beacon endpoint datadog install-pack --output ./beacon-datadog-pack
For system mode:
Use system mode
sudo /opt/beacon/bin/beacon endpoint datadog install-pack --system --output ./beacon-datadog-pack
Terminal showing beacon endpoint datadog install-pack writing the beacon-datadog-pack directory.
Install the generated Datadog Agent config and restart the Agent:
Install the generated Datadog Agent config and restart the Agent
sudo mkdir -p /opt/datadog-agent/etc/conf.d/beacon.d
sudo cp ./beacon-datadog-pack/conf.yaml /opt/datadog-agent/etc/conf.d/beacon.d/conf.yaml
sudo chmod 0644 /opt/datadog-agent/etc/conf.d/beacon.d/conf.yaml
sudo launchctl kickstart -k system/com.datadoghq.agent

​
5. Validate End To End

Write a test event:
Write a test event
beacon endpoint datadog validate
For system mode:
Use system mode
sudo /opt/beacon/bin/beacon endpoint datadog validate --system
Terminal showing beacon endpoint datadog validate writing a validation event and printing the Datadog query.
Check Datadog Agent status:
Check Datadog Agent status
sudo datadog-agent status
Look for:
  • beacon
  • Status: OK
  • Service: beacon-endpoint-agent
  • Source: beacon
  • LogsProcessed and LogsSent greater than zero

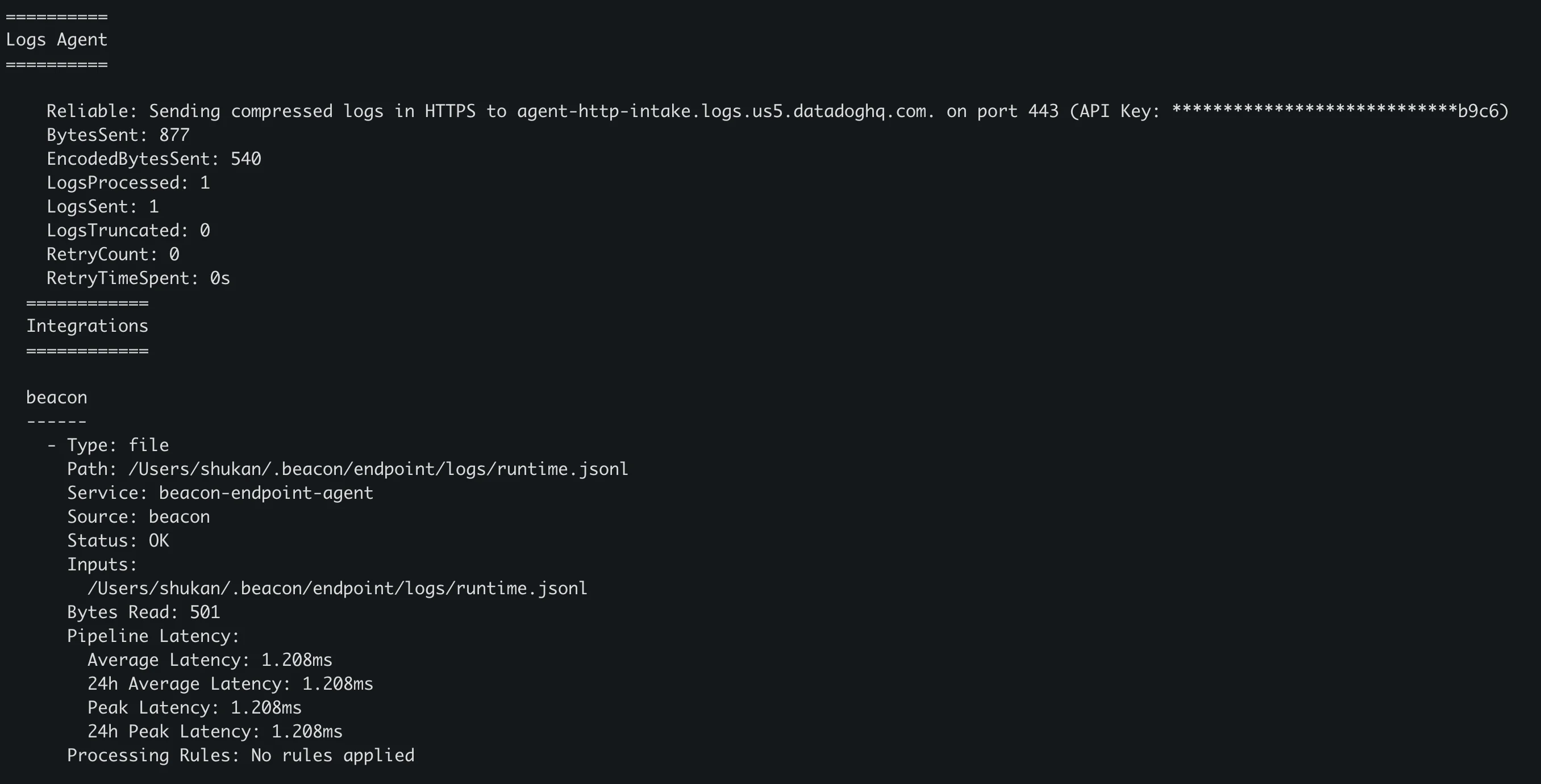

Datadog Agent status showing Logs Agent and beacon integration with Status OK, service beacon-endpoint-agent, source beacon, and logs sent.

​
6. Search In Datadog

In Datadog Log Explorer, search for:
service:beacon-endpoint-agent
To find the validation event:
service:beacon-endpoint-agent "Beacon endpoint datadog validation event"

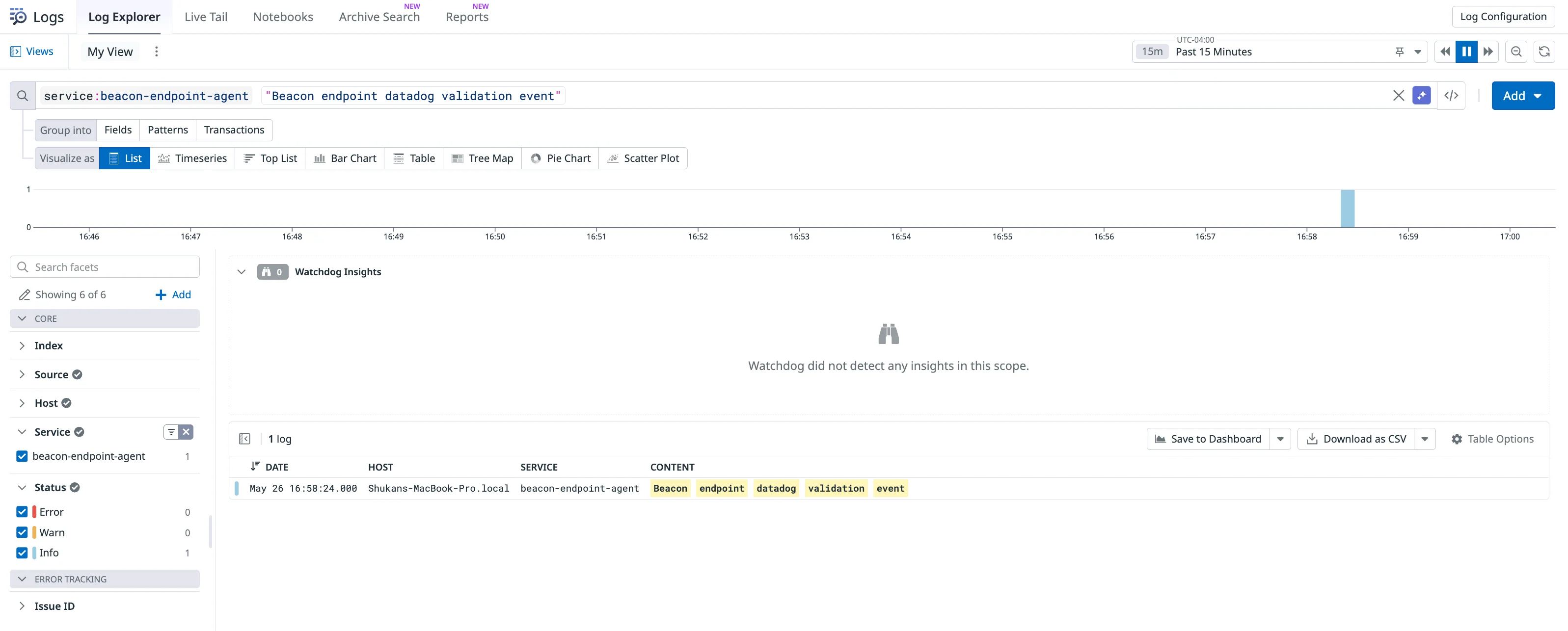

Datadog Log Explorer showing a query for service beacon-endpoint-agent and the Beacon Datadog validation event.
When everything is wired up, Beacon events appear under service:beacon-endpoint-agent. Expanding a log shows the normalized Beacon fields such as event.action, harness.name, prompt.text, content.retention, repository, and session.

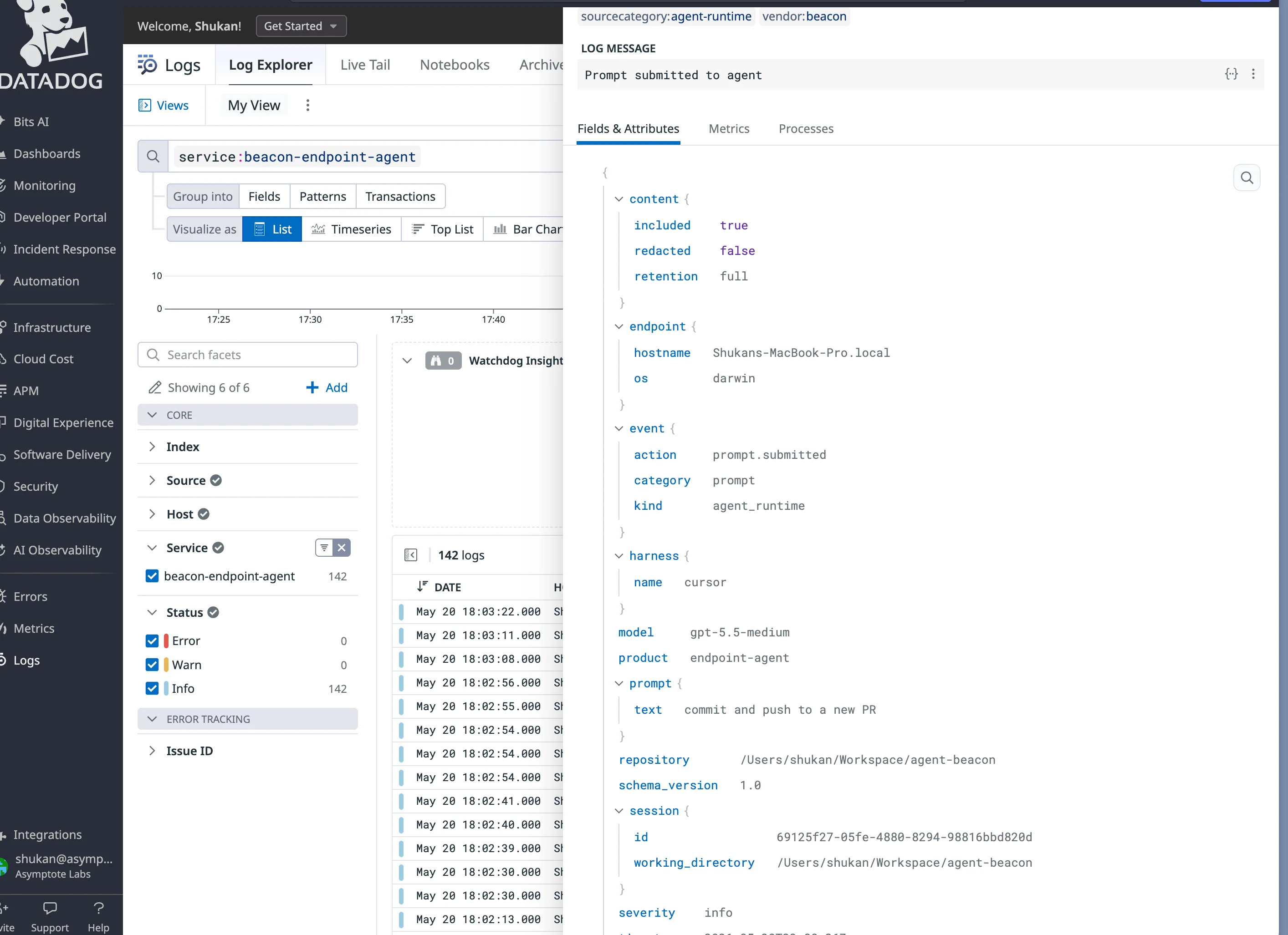

Datadog Log Explorer showing Beacon endpoint logs with the expanded Fields and Attributes panel, including event, harness, prompt, content, repository, and session fields.

​
Troubleshooting

If Datadog status shows permission denied, the Agent cannot read the runtime log. The Datadog Agent usually runs as _dd-agent. For local user testing, either grant _dd-agent access to the user-mode log path or use system mode instead. For MDM deployment, use system mode so the Agent tails /var/log/beacon-agent/runtime.jsonl. If Log Explorer is empty:
  • Confirm logs_enabled: true.
  • Confirm /opt/datadog-agent/etc/conf.d/beacon.d/conf.yaml exists.
  • Restart the Agent.
  • Run beacon endpoint datadog validate again.
  • Check sudo datadog-agent status.

​
Content Handling

Beacon applies redaction, sanitization, truncation, and event-size limits before events are written to runtime.jsonl and tailed by Datadog Agent. Review log access, indexes, retention, and downstream consumers so retained telemetry matches your approved collection policy.

​
OpenTelemetry Note

Datadog’s DDOT Collector is a good fit for OTel-first Linux or Kubernetes deployments, but Beacon’s macOS endpoint v0 uses native Datadog Agent file log collection because it is the supported host path for tailing local JSONL files.
